FINDER Search and Rescue Technology helped save lives in Nepal
In the wreckage of a collapsed textile factory and another building in the Nepalese village of Chautara, four men were rescued, thanks to a NASA technology that was able to find their heartbeats. A small, suitcase-sized device called FINDER helped uncover these survivors – two from each destroyed building – in one of the hardest-hit areas of the 7.8-magnitude earthquake that rattled Nepal on April 25, 2015. The technology detected the men’s presence even though they were buried under about 3 meters of brick, mud, wood and other debris.
Overview
FINDER, which stands for Finding Individuals for Disaster and Emergency Response, is a collaboration between NASA’s Jet Propulsion Laboratory (JPL), Pasadena, California, and the Department of Homeland Security’s Science and Technology Directorate in Washington. The California Institute of Technology in Pasadena, which manages JPL for NASA, licensed a version of the technology to R4 Incorporated, Edgewood, Maryland. R4 took FINDER to Nepal to assist with relief efforts in the aftermath of the earthquake. David Lewis, the company’s president, brought two protoypes to Nepal and joined an international contingent of search and rescue personnel, which helped find the four men in Chautara. “It is very gratifying to have a piece of technology that we developed at JPL out in the field helping to save lives,” said James Lux, task manager for the FINDER project at JPL.

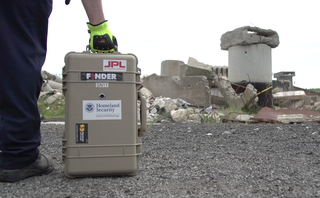

The FINDER device, The Finding Individuals for Disaster and Emergency Response prototype technology, was demonstrated using a pile of rubble in Lorton, Virginia, on May 7, 2015. Photo credit: NASA/JPL-Caltech/DHS.

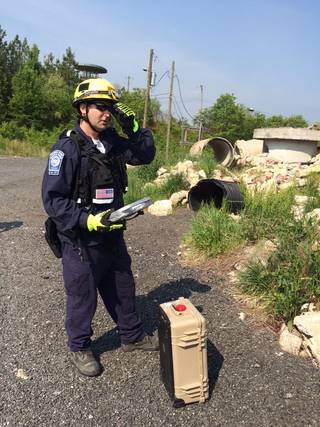

The FINDER device is operated using a hand-held device, such as a laptop, running the FINDER software. The user can specify a minimum and maximum range for detecting heartbeats in the vicinity. Photo credits: NASA/JPL-Caltech/DHS.
In natural disasters such as earthquakes and avalanches, timing is everything. The faster victims can be found, rescued and taken to safety and medical care, the more likely they are to survive. “FINDER is a tool that complements the other search methods, like canines, listening devices and cameras, used by first responders,” Lux said. “It provides another item in the toolbox for search and rescue.” FINDER sends a low-powered microwave signal – about one-thousandth of a cell phone’s output – through rubble and looks for changes in the reflections of those signals coming back from tiny motions caused by victims’ breathing and heartbeats. In tests, FINDER has detected heartbeats through 9 meters of rubble or 6 meters of solid concrete.
A rescue worker with FINDER, using a rugged laptop running the FINDER software, can specify a minimum and maximum range for detecting heartbeats in the vicinity. The program identifies whether the signal is stronger from the left or right as well, to further home in on victims’ locations. The FINDER device weighs less than 20 pounds, so it can easily be transported by car or plane. FINDER detects the small motions using algorithms similar to those that JPL uses to measure the orbits of satellites at Jupiter and Saturn, or changes in Earth’s surface from orbiting satellites. It then displays the detected heart and respiration rates and a reliability score. FINDER’s software can distinguish between the heartbeats of a human and those of animals or mechanical devices. Besides natural disaster settings, the device could be used to find people lost in a forest, trapped in a burning house or buried in the wreckage of a collapsed building. “We have had countless people ask us for different applications,” Lux said. “One of the more unusual was whether FINDER could detect rhinoceroses hidden in bushes for the purpose of protecting them. We have not tried it for that, but in principle, it should work.” There are many potential uses in medicine as well: A device based on FINDER could monitor the vital signs of someone who is trapped in a car or quarantined with an extremely contagious disease such as Ebola. In these situations, first responders could measure a patient’s heartbeat without having to physically touch them. The next generation of this technology could combine FINDER with robotics and even small autonomous flying vehicles to get closer to victims and examine a wider area.
The post New heartbeat detector may save lives after disasters appeared first on National Aeronautics and Space Administration (NASA) of May 8, 2015.
Reference
Landau E. “FINDER Search and Rescue Technology Helped Save Lives in Nepal”. [https://www.nasa.gov/jpl/finder-search-and-rescue-technology-helped-save-lives-in-nepal]. May 2015.
